How Does the Trade-Off Between Optimization and Redesign Shift for Rudder Systems?
Within rudder systems, the trade-off between optimization and redesign rarely shifts at a single clearly identifiable moment. In many cases, modifications initially continue to produce measurable results: steering response becomes calmer, energy loss decreases slightly or force build-up feels more consistent under load. The boundary only becomes visible once flow analysis shows that the system keeps returning to the same pattern under comparable operating conditions despite further optimization efforts.
At that point, the rudder itself does not change. The meaning of further improvement within the same arrangement does.
When Optimization of Rudder Systems Loses Its Effective Range
Optimization remains effective as long as changes in profile geometry, positioning or flow guidance still influence overall system response. Small interventions may stabilize pressure distribution or reduce local flow disturbances.
Over time, that pattern begins to shift. New adjustments still affect parts of the flow field, but the overall system response changes only marginally. The rudder reacts differently, while the arrangement as a whole continues operating within the same hydrodynamic limitation.
That distinction often only becomes visible once comparable loading conditions repeatedly return to the same operational pattern.
Geometry as the Limiting Factor Within the Existing Arrangement

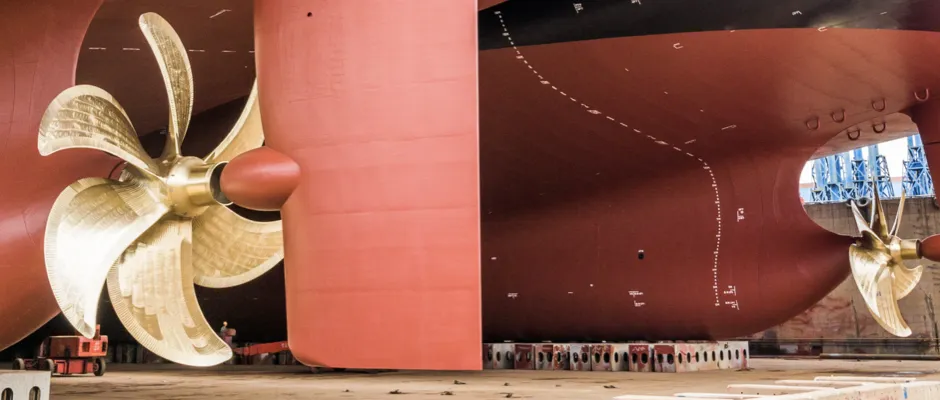

The position of the rudder relative to the hull and propeller slipstream determines how much of the available flow energy remains usable for stable force build-up. As long as the profile operates sufficiently within the energy-rich zones of the slipstream, optimization remains relatively effective.
Once sections of the rudder begin operating structurally outside those zones, limitations emerge that profile modifications alone can no longer fully correct. Energy distribution across the rudder surface remains uneven even when the profile itself is improved locally.
At that point, the limitation shifts from profile behaviour towards arrangement behaviour.
Inflow Conditions That Continue Dominating Rudder System Behaviour
Inflow quality largely determines how much control a rudder system retains over its own flow field. Under stable inflow conditions, the angle of attack across the profile remains sufficiently consistent to support reproducible force build-up.
In some arrangements, however, inflow remains structurally disturbed by hull geometry, propeller loading or asymmetry within the slipstream. Optimization may partially dampen those variations, but does not remove the underlying cause by itself.
The system therefore remains dependent on a flow foundation that continues to operate unevenly or unstably.
Diminishing Returns From Further Optimization
An important signal emerges once new optimization measures deliver increasingly smaller improvements while technical complexity and investment effort continue rising.
Early interventions often deliver clear gains in efficiency, steering response or load distribution. Later modifications generally shift the system only marginally within the same operating range.
Not every improvement disappears entirely, but the relationship between effort and system-level effect changes noticeably.
Mismatch Between the Rudder System and Actual Operational Use
Rudder systems are designed around a specific speed and loading profile. Once operational use, sailing area or loading structure changes, the surrounding flow field changes with it.
An arrangement may therefore remain technically intact while the rudder increasingly operates outside its optimal range under actual operating conditions. Some situations remain manageable, while others produce recurring instability or inefficiency.
Optimization may partially absorb such deviations, but cannot always neutralize them structurally within the same geometric foundation.
When Stability No Longer Returns Naturally
A stable rudder system absorbs small disturbances and returns to a recognizable equilibrium after variations in loading or inflow. That property becomes less self-evident once flow behaviour and geometry no longer correspond correctly.
Small loading differences then influence steering response, resistance or force build-up more directly. The system continues functioning, but increasingly loses the stable reference condition to which it naturally returns.
Under comparable operating conditions, small variations therefore continue appearing without full recovery towards the same pattern.
What Flow Analysis Reveals in Practice
Operationally, the process rarely appears as abrupt failure, but as a series of recurring signals. The rudder begins requiring varying angles for comparable manoeuvres, earlier optimization measures gradually lose effectiveness or energy consumption remains higher than expected despite further modifications.
Some arrangements remain technically usable while becoming increasingly sensitive to changes in loading or inflow.
It is precisely that repetition which reveals that the limitation no longer exists locally, but has become part of the arrangement itself.
When Flow Analysis Confirms That Redesign Becomes Necessary
Flow analysis shows that the balance shifts from optimization towards redesign once rudder systems continue operating within the same hydrodynamic limitation under comparable operating conditions and further optimization no longer delivers reproducible improvements in force build-up, stability or energy utilization within the existing arrangement.
This Article Within the Series
Within Economics, Subsidies and Strategic Decision-Making for Rudder Systems, this article builds on When Does Ship Rudder Retrofit Become Economically Necessary, where the focus lay on the point at which recurring energy and maintenance costs could no longer be sufficiently reduced within the same arrangement. This article shifts that line towards the technical limitation of optimization itself and shows when improvements may still produce local effects without changing the response of the overall system.
From there, the series moves towards When Does a Rudder System Fail Under Extreme Load Conditions, where the limitation of redesign is extended towards the outer operational loading boundary. Where this article shows when rudder systems continue returning to the same hydrodynamic limitation within the same arrangement, the following article examines when flow behaviour, loading and geometry ultimately stop forming a reproducible force equilibrium.
For shipowners, operators and technical managers, this transition becomes practically relevant because the balance between optimization and redesign only becomes clear once improvements continue returning to the same pattern under comparable operating conditions. Once modifications still create local effects while the arrangement as a whole no longer develops a more stable or efficient response, assessment shifts away from further optimization towards the question of whether the fundamental rudder system still matches the actual operational profile.
